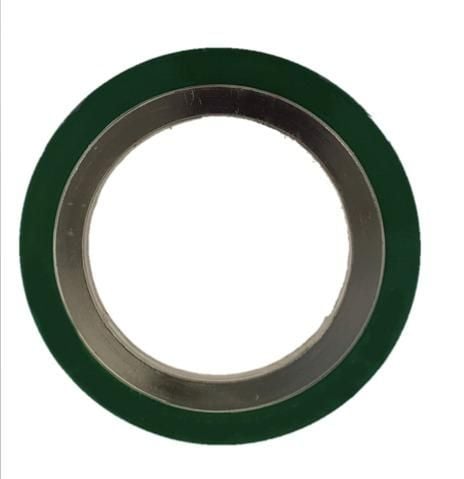

Spiral Wound Gasket SS304 ASME B16.20 300lb RF
Thương hiệu: TDC Select
|
Loại: Sealings & Gasket
|
Mã SP: TDC-TBVTNN-18
Liên hệ
Mfr#: ASME B16.20
CG Type Spiral Wound Gasket Specification List
View various color codes and types of Spiral Wound Gasket Material, manufacturer of Flange Spiral Wound Metallic Gasket
Spiral Wound Gaskets thickness | 2.5, 3.2, 4.5, 6.4, 7.2 |
---|---|
API Spiral Wound Gasket Pressure Rating | Upto 400bar |
Flexitallic Spiral Wound Gasket Temperature | -250 to +1000 degree C |
Spiral Wound Gasket Material Configurations
Winding / Inner / Outer Ring Material Combinations | Maximum Temperature | ASME B16.20 Colour Coding |
---|---|---|
Carbon Steel | 500⁰C | Silver |
304 Stainless Steel | 550⁰C | Yellow |
316/L Stainless Steel | 550⁰C | Green |
316 Ti Stainless Steel | 650⁰C | Light Blue |
321 Stainless Steel | 650⁰C | Turquoise |
347 Stainless Steel | 650⁰C | Blue |
Duplex | 800⁰C | N/A |
Nickel 200 | 600⁰C | Red |
Monel 400 | 600⁰C | Orange |
Titanium | 350⁰C | Purple |
Hastelloy B-2 | 450⁰C | Brown |
Hastelloy C-276 | 450⁰C | Beige |
Inconel 600 | 950⁰C | Gold |
Inconel 625 | 450⁰C | Gold |
Inconel X-750 | 1000⁰C | Light Grey |
Incoloy 825 | 450⁰C | White |
ASME B16.20 Spiral Wound Gasket Color Codes
Types of SS Spiral Wound Gasket
Gasco approved Spiral Wound Gasket manufacturers in India, supplier of Spiral Wound Gasket Without Inner and Outer Ring
Spiral Wound Gaskets Winding Material
Winding Material | Recommended Maximum Temperature |
304 Stainless Steel | 650 oC |
304L Stainless Steel | 650 oC |
316 / 316L Stainless Steel | 650 oC |
316Ti Stainless Steel | 650 oC |
347 Stainless Steel | 650 oC |
321 Stainless Steel | 650 oC |
Filler Material of SS316 Spiral Wound Gasket
Filler Material | Recommended Maximum Temperature |
Graphite | 550 oC |
PTFE | 260 oC |
CAF | 440 oC |
Class 150 API Spiral wound Gasket Dimensions Schedule
Stocking distributor of Flexitallic Spiral Wound Gasket, exporter of ASME B16 20 Gaskets in India
NPS | Inner Ring | Sealing | Element | Outer Ring |
---|---|---|---|---|
Inside Dia (d1) | Inside Dia (d2) | Outside Dia (d3) | Outside Dia (d4) | |
½ | 14.2 | 19.1 | 31.8 | 47.8 |
¾ | 20.6 | 25.4 | 39.6 | 57.2 |
1 | 26.9 | 31.8 | 47.8 | 66.8 |
1¼ | 38.1 | 47.8 | 60.5 | 76.2 |
1½ | 44.5 | 54.1 | 69.9 | 85.9 |
2 | 55.6 | 69.9 | 85.9 | 104.9 |
2½ | 66.5 | 82.6 | 98.6 | 124.0 |
3 | 81.0 | 101.6 | 120.7 | 136.7 |
4 | 106.4 | 127.0 | 149.4 | 174.8 |
5 | 131.8 | 155.7 | 177.8 | 196.9 |
6 | 157.2 | 182.6 | 209.6 | 222.3 |
8 | 215.9 | 233.4 | 263.7 | 279.4 |
10 | 268.2 | 287.3 | 317.5 | 339.9 |
12 | 317.5 | 339.9 | 374.7 | 409.7 |
14 | 349.3 | 371.6 | 406.4 | 450.9 |
16 | 400.1 | 422.4 | 463.6 | 514.4 |
18 | 449.3 | 474.7 | 527.1 | 549.4 |
20 | 500.1 | 525.5 | 577.9 | 606.6 |
24 | 603.3 | 628.7 | 685.8 | 717.6 |
ASME B16.5 CLASS 300 LB Spiral wound Gasket Dimension
NPS | Inner Ring | Sealing | Element | Outer Ring |
---|---|---|---|---|
Inside Dia (d1) | Inside Dia (d2) | Outside Dia (d3) | Outside Dia (d4) | |
½ | 14.2 | 19.1 | 31.8 | 54.1 |
¾ | 20.6 | 25.4 | 39.6 | 66.8 |
1 | 26.9 | 31.8 | 47.8 | 73.2 |
1 ¼ | 38.1 | 47.8 | 60.5 | 82.6 |
1 ½ | 44.5 | 54.1 | 69.9 | 95.3 |
2 | 55.6 | 69.9 | 85.9 | 111.3 |
2 | ½ 66.5 | 82.6 | 98.6 | 130.3 |
3 | 81.0 | 101.6 | 120.7 | 149.4 |
4 | 106.4 | 127.0 | 149.4 | 181.1 |
5 | 131.8 | 155.7 | 177.8 | 215.9 |
6 | 157.2 | 182.6 | 209.6 | 251.0 |
8 | 215.9 | 233.4 | 263.7 | 308.1 |
10 | 268.2 | 287.3 | 317.5 | 362.0 |
12 | 317.5 | 339.9 | 374.7 | 422.4 |
14 | 349.3 | 371.6 | 406.4 | 485.9 |
16 | 400.1 | 422.4 | 463.6 | 539.8 |
18 | 449.3 | 474.7 | 527.1 | 596.9 |
20 | 500.1 | 525.6 | 577.9 | 654.1 |
24 | 603.3 | 628.7 | 685.8 | 774.7 |
ASME B16.47 CLASS 150 LB API Spiral Wound Gasket Dimension Chart
NPS | Inner Ring | Sealing | Element | Outer Ring |
---|---|---|---|---|
Inside Dia (d1) | Inside Dia (d2) | Outside Dia (d3) | Outside Dia (d4) | |
26 | 654.1 | 673.01 | 704.9 | 774.7 |
28 | 704.9 | 723.9 | 755.7 | 831.9 |
30 | 755.7 | 774.7 | 806.5 | 882.7 |
32 | 806.5 | 825.5 | 860.6 | 939.8 |
34 | 857.3 | 876.3 | 911.4 | 990.6 |
36 | 908.1 | 927.1 | 968.5 | 1047.8 |
38 | 958.9 | 977.9 | 1019.3 | 1111.3 |
40 | 1009.7 | 1028.7 | 1070.1 | 1162.1 |
42 | 1060.5 | 1079.5 | 1124.0 | 1219.2 |
44 | 1111.3 | 1130.3 | 1178.1 | 1276.4 |
46 | 1162.1 | 1181.1 | 1228.9 | 1327.2 |
48 | 1212.9 | 1231.9 | 1279.7 | 1384.3 |
50 | 1263.7 | 1282.7 | 1333.5 | 1435.1 |
52 | 1314.5 | 1333.5 | 1384.3 | 1492.3 |
54 | 1358.9 | 1384.3 | 1435.1 | 1549.4 |
56 | 1409.7 | 1435.1 | 1485.9 | 1606.6 |
58 | 1460.5 | 1485.9 | 1536.7 | 1663.7 |
60 | 1511.3 | 1536.7 | 1587.5 | 1714.5 |
Dimension Standard of Aerosil Spiral Wound Gasket Series A CLASS 300 LB
NPS | Inner Ring | Sealing | Element | Outer Ring |
---|---|---|---|---|
Inside Dia (d1) | Inside Dia (d2) | Outside Dia (d3) | Outside Dia (d4) | |
26 | 654.1 | 685.8 | 736.6 | 835.2 |
28 | 704.9 | 736.6 | 787.4 | 898.7 |
30 | 755.7 | 793.8 | 844.6 | 952.5 |
32 | 806.5 | 850.9 | 901.7 | 1006.6 |
34 | 857.3 | 901.7 | 952.5 | 1057.4 |
36 | 908.1 | 955.8 | 1006.6 | 1117.6 |
38 | 952.5 | 977.9 | 1016.0 | 1054.1 |
40 | 1003.3 | 1022.4 | 1070.1 | 1114.6 |
42 | 1054.1 | 1073.2 | 1120.9 | 1165.4 |
44 | 1104.9 | 1130.3 | 1181.1 | 1219.2 |
46 | 1152.7 | 1178.1 | 1228.9 | 1273.3 |
48 | 1209.8 | 1235.2 | 1286.0 | 1324.1 |
50 | 1244.6 | 1295.4 | 1346.2 | 1378.0 |
52 | 1320.8 | 1346.2 | 1397.0 | 1428.8 |
54 | 1352.6 | 1403.4 | 1454.2 | 1492.3 |
56 | 1403.4 | 1454.2 | 1505.0 | 1543.1 |
58 | 1447.8 | 1511.3 | 1562.1 | 1593.9 |
60 | 1524.0 | 1562.1 | 1612.9 | 1644.7 |
