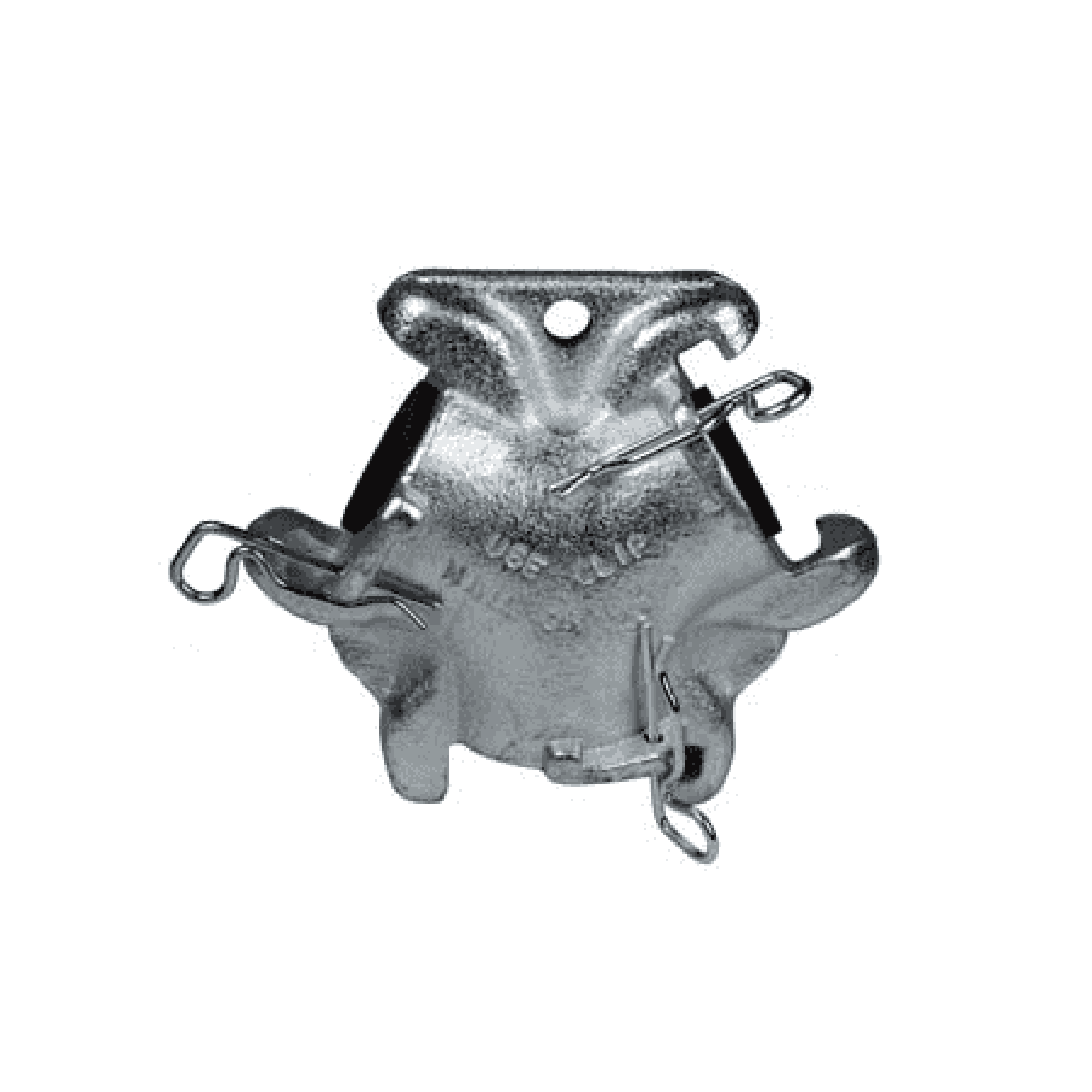

Khớp Nối Nhanh Chicago 3 Đầu Nối AM10 Dixon Valve Air King Universal Coupling - Triple Connection - Iron

Thương hiệu: Dixon
|
Loại: Khớp Nối Công Nghiệp
|
Mã SP: TDC-TBHTTD-81
Liên hệ
Mfr #: AM10
Xuất Sứ:
Chứng Chỉ:
Tiêu đề
Số lượng
Hotline mua hàng Gọi ngay 093 129 9618 CSKH 093 129 9618
Features:
  • Safety clip included
  • Supplied with rubber washer, part # AWR4
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Pressure rating given at ambient temperature 70°F/21°C
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
  • Never use any Air King coupling for steam service!
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
Part Number Material Seal PSI Weight (Lbs)
AM10 Iron Rubber 150 (10.20 bar) 1.1750
GAB10 Brass Rubber 150 (10.20 bar) 1.3500
