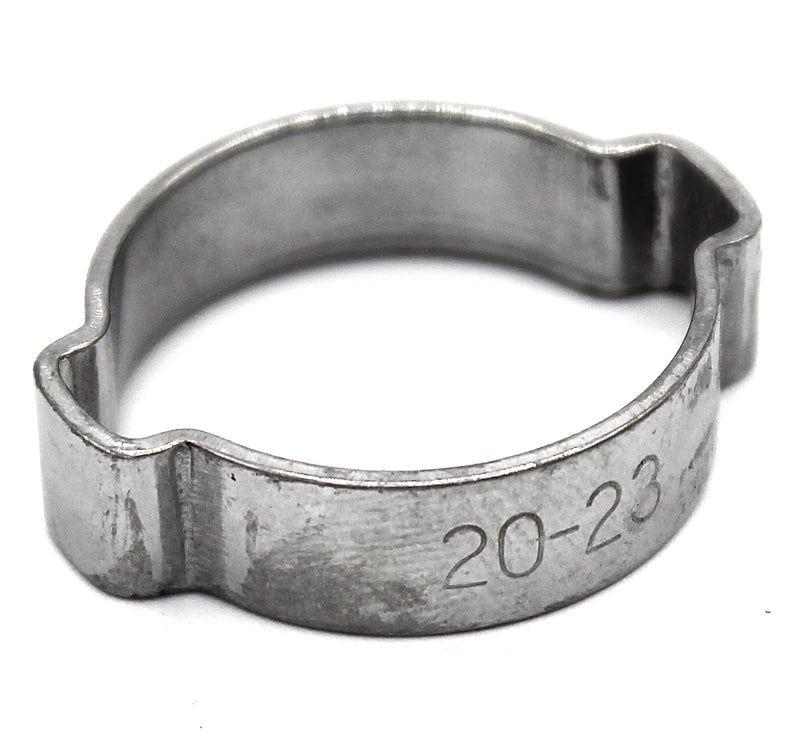

Double Ear Hose Pinch-On Clamp - 20-23mm
Thương hiệu: TDC Select
|
Loại: Linh Kiện Khí Nén
|
Mã SP: TDC-TBHTTD-129
Liên hệ
Mfr #:
Xuất Sứ:
Chứng Chỉ:
Xuất Sứ:
Chứng Chỉ:
Product Specifications
- Diameter Range (A) mm 20.0 - 23.0
- Diameter Range (A) inch 0.79 - 0.91
- Band Width (B) mm - inch 1.3 - 0.051
- Band Thickness (C) mm - inch 8.0 - 0.051
- Material W4 Stainless Steel AISI 304
- Manufactured By Mikalor
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Tamper Proof for extra security
- Consistent Sealing Pressure
- No Sharp edges
- Quick & simple to Install
- Effective on metal to metal connections
The use of two ear clips is an economical solution for many simple hose assemblies, used with air or other fluids. The two ears give the clip extra grip and help to maintain constant pressure around the hose. Fitting is more flexible and exact. The practical design of two ear clips means that they clamp firmly on to the assembly and cannot be removed once mounted. The edges are rounded to avoid damage to the hose. Due to the AISI-304 steel used in the manufacture of these clips, their corrosion resistance is outstanding. They are recommended especially in outdoor applications.
